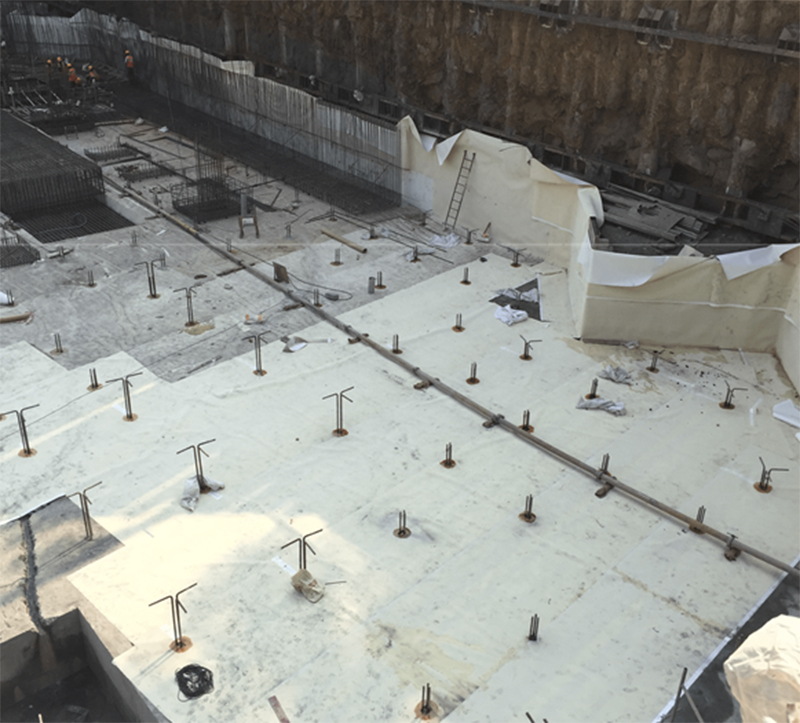

Vertical Passive Anchor

Vertical Passive anchor convinces by its simple design. The grout body encasing the steel provides Standard Corrosion Protection, enables the force transfer into the rock or soil and stabilizes against buckling in weak soil layers. The small drill hole diameter allows economic drilling methods. Drilling through hard obstacles and bonding rock is easily accomplished. Single rock anchor can also be used as multibar Micro Piles.

Applications

  • Shore piling Support
  • Retaining Wall Support
  • Cliff / Embankment stabilisation
  • Uplift Raft Anchors

Capability

  • Diameter from 75 mm – 100 mm
  • Depths up to 10 mtr in headroom of 3 mtr

Anchors

  • Bar or FRP anchor
  • Capacity as per ground conditions
  • Double corrosion protection
