Qur flexible drilling rigs are capable of drilling vertically and at any angle, so small and medium diameter anchors can be drilled to achieve exceptionally high pile capabilities. In addition, restricted access drilling rigs can be used in tight corners.
Using the ODEX system, steel casings can be used to support loose ground or fractured rock, and once the solid rock is reached a rock socket can be constructed in the rock using a down-the-hole-hammer. Sacrificial casings can be used to support the piles through any voids.
We also have the capability to advance rock sockets with our standard bored piling machines.

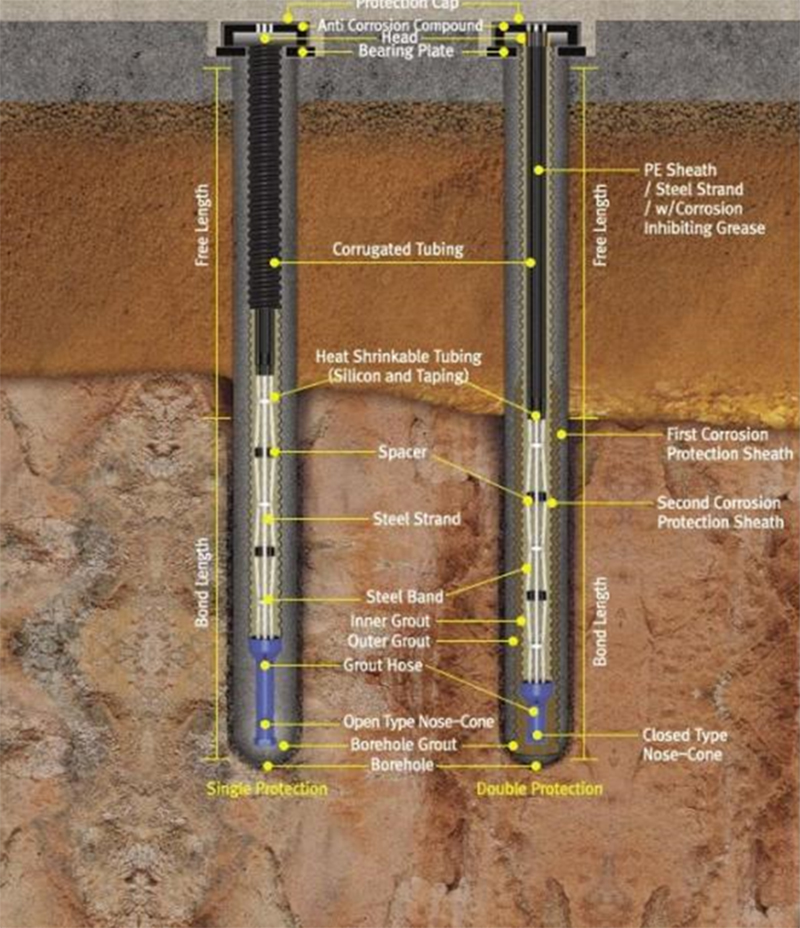

Rock anchors are installed to IS 10720 / BS 8081 with full corrosion protection if required and can be used to retain rock faces or provide economic support to any retaining wall.
Applications
- Shore piling Support
- Retaining Wall Support
- Cliff / Embankment stabilisation.
- High Capacity small diameter rock socket drilling.
- Uplift Raft Anchors
Capability
- Diameter from 75 mm – 300 mm
- Depths up to 35mm in headroom of 3mm
- Constructed if necessary with a permanent linear through rock voids.
Anchors
- Bar or Strand anchor.
- Capacity as per ground conditions
- Double corrosion protection.
